Can-Am Maverick X3 6" Portal Gear Lift

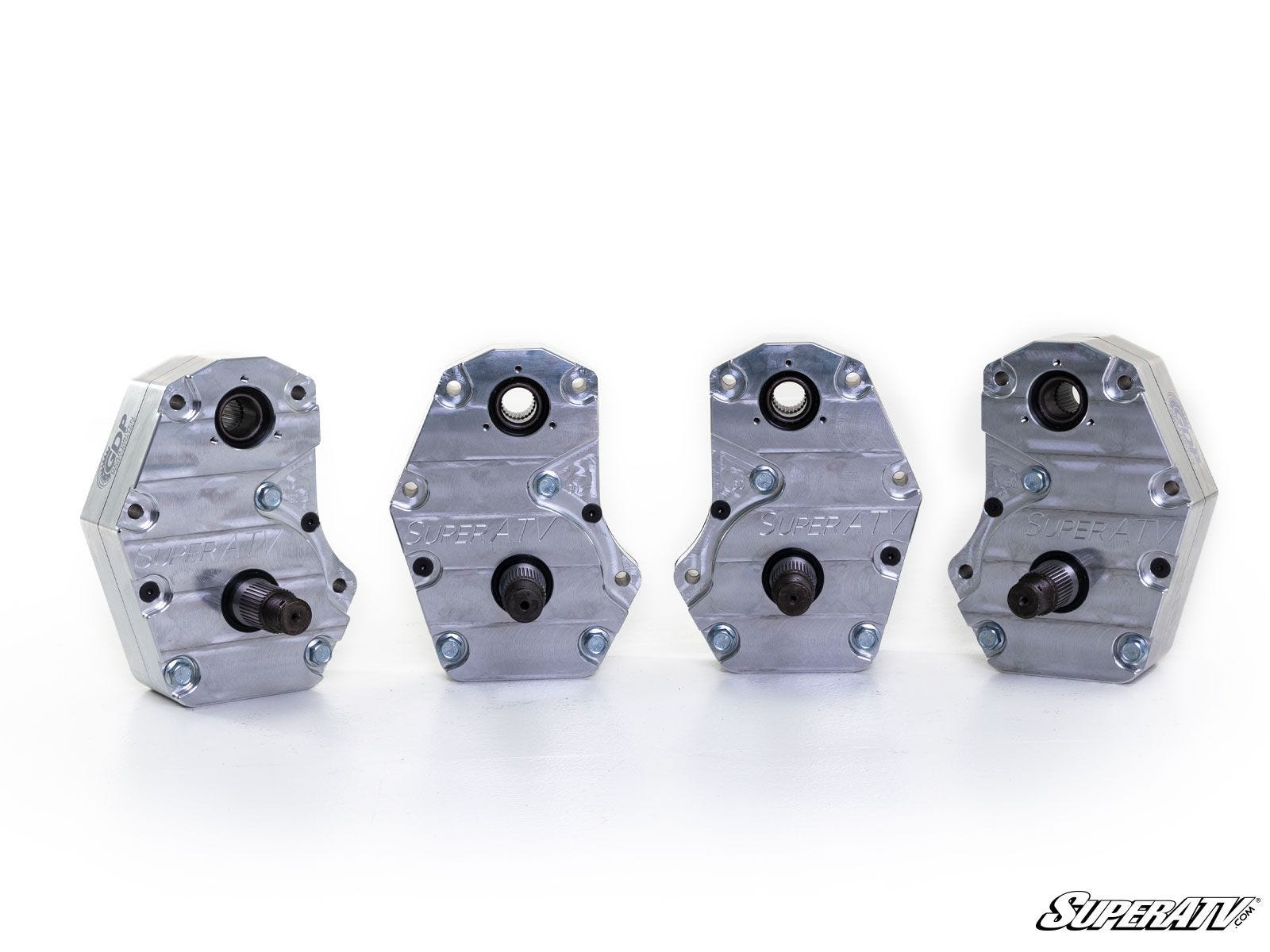

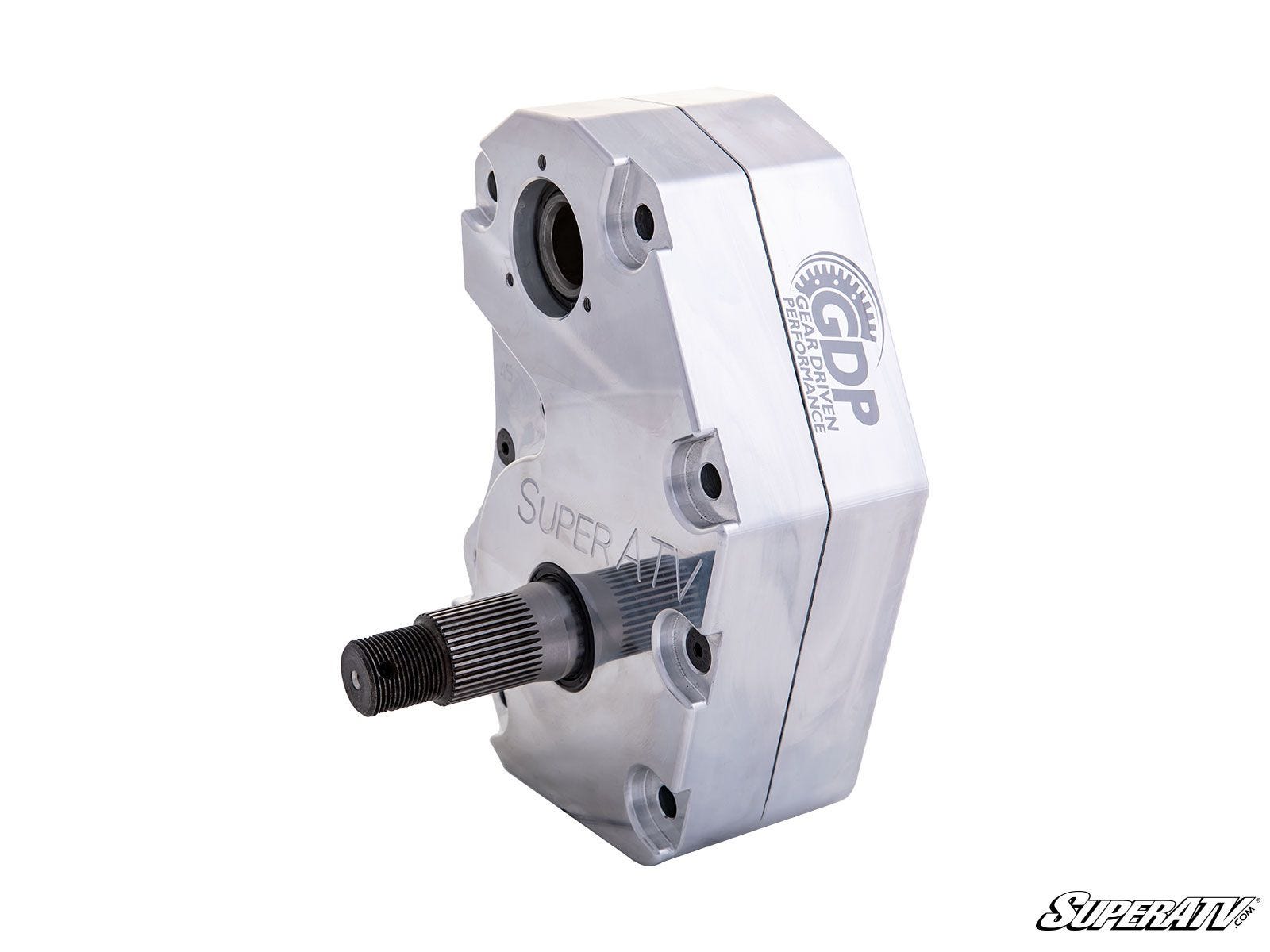

• Available with billet or cast aluminum housing

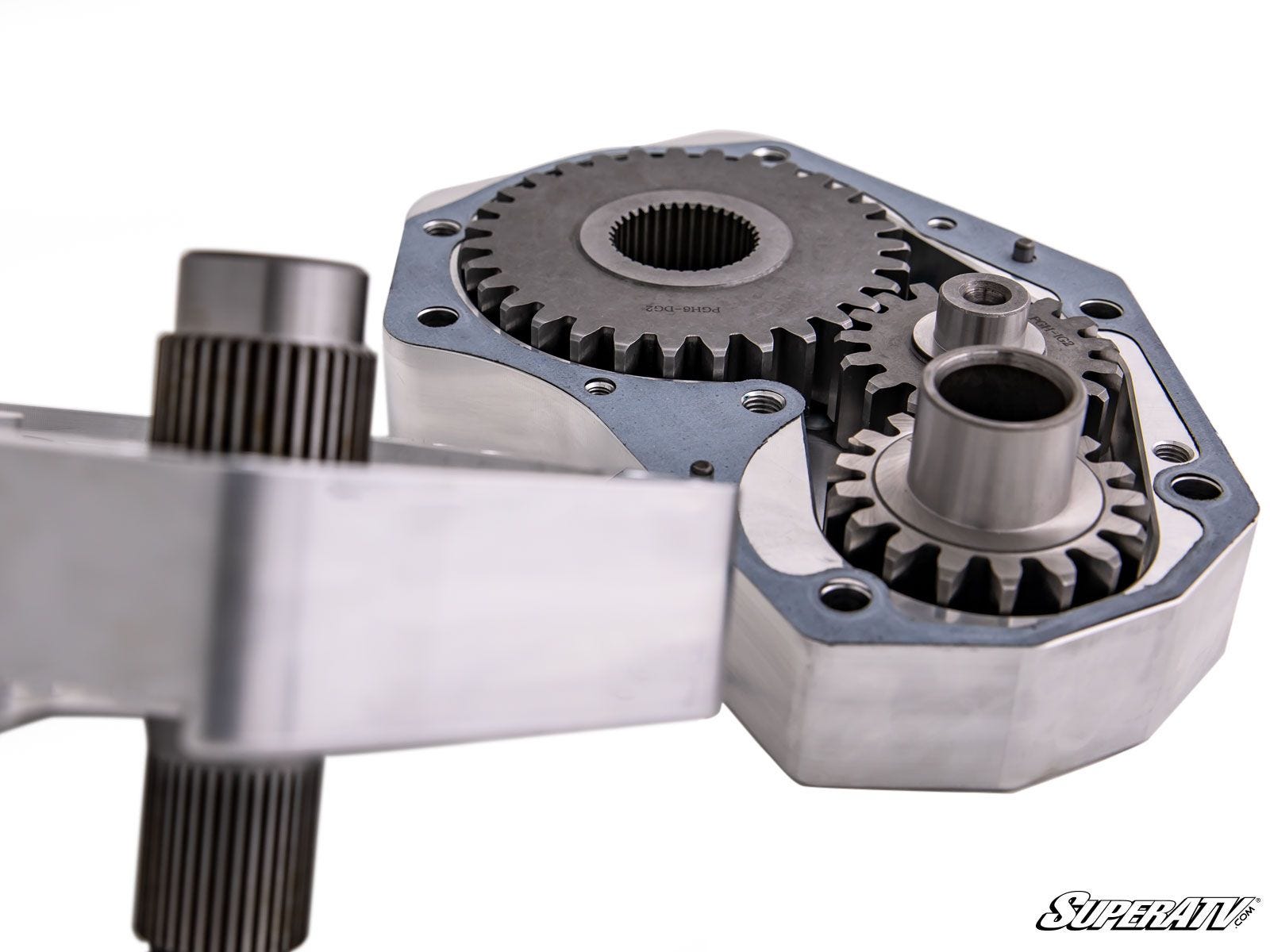

• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• No Leak Bearings and Seals
• Universal Hub Fits All Major bolt pattern
• Comes complete with all hardware, backing plates, brakes lines and instructions

SuperATV’s GDP 6” Portal Gear Lift for the Can-Am Maverick X3 gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub which means they maintain suspension geometry and reduce drivetrain stress. Customize by choosing between a 30% or 45% gear reduction and selecting a cast or billet aluminum housing. GDP portals are truly geared for all. See what customer Goose Bellows has to say about our 6” portals on his Instagram famous Can-Am Maverick XRS, aka Lil Buckin’ Crazy.

FITMENT

64" Models

• Can-Am Maverick X3 900 : 2018+
• Can-Am Maverick X3 Turbo : 2017+
• Can-Am Maverick X3 Turbo R : 2017+
• Can-Am Maverick X3 X DS Turbo R : 2017+
• Can-Am Maverick X3 X RC Turbo : 2018+
• Can-Am Maverick X3 X MR Turbo : 2018+
• Can-Am Maverick X3 MAX Turbo : 2017+
• Can-Am Maverick X3 MAX Turbo R : 2017+
• Can-Am Maverick X3 MAX X DS Turbo : 2017+

72" Models

• Can-Am Maverick X3 X RC Turbo R : 2018+
• Can-Am Maverick X3 X RC Turbo RR : 2020+
• Can-Am Maverick X3 X RS Turbo R : 2017+
• Can-Am Maverick X3 X RS Turbo RR : 2020+
• Can-Am Maverick X3 X MR Turbo R : 2018+
• Can-Am Maverick X3 X MR Turbo RR : 2020+
• Can-Am Maverick X3 MAX X RS Turbo R : 2017+
• Can-Am Maverick X3 MAX X RS Turbo RR : 2020+
• Can-Am Maverick X3 MAX X MR Turbo RR : 2020+

Wheel Requirements

• 18" of larger wheel required
• 18” wheels cannot exceed 4-1/2” backspacing
• 20” and larger wheels cannot exceed 5” backspacing

INCLUDES

Item

1. Portal Kit - QTY 1
2. Installation Guide - QTY 1

DETAILS

Shipping

• Box Dimensions: TBD
• Weight: 100 lbs.

DOWNLOADS

Instructions

Installation Guide for PGH6-7-72-452

Installation Guide for PGH6-7-72-451

Installation Guide for PGH6-7-72-302

Installation Guide for PGH6-7-72-301
