GATES

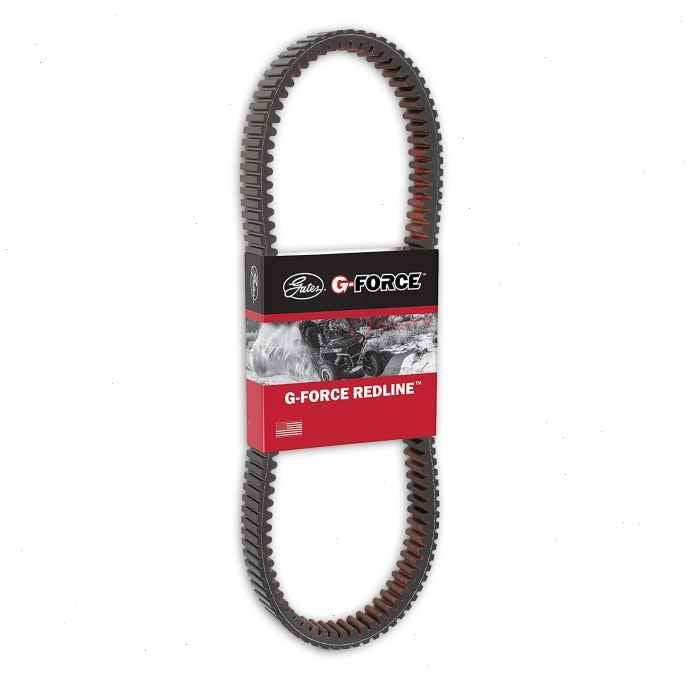

GATES G-FORCE REDLINE CVT BELT 48R4289

GATES G-FORCE REDLINE CVT BELT 48R4289

Regular price $178.85 USD
Regular price $232.79 USD Sale price $178.85 USD
Sale Sold out

Drive Belt Can Am Fits: 2017-2020 Maverick X3 900HO Turbo R Turbo RR 2017-2020 Maverick Trail/Sport 800R, 1000, 1000R 2016-2020 Defender HD10/HD8

Replaces OEM # 422280651 / 417300383 / 422280654 / 422280652 Gates Part number 48R4289 If you have fitment questions, please ask, we are here to help.

IF YOUR MAVERICK HAS A REAR DRIVESHAFT (OG MAVERICK) THIS BELT WILL NOT FIT.

FEATURES AND BENEFITS
Designed for the most demanding, turbo-charged off-road CVT applications. With Gates proprietary materials and design, G-Force™ RedLine™ CVT belts handle extreme temperatures with excellent heat recovery, while maximizing load and torque capacity ― making it one of the most efficient CVT belts currently on the market.

  • First on the market to utilize Ethylene Elastomer compound to address the needs of larger SxS and high-horsepower ORVs in tough riding conditions.
  • Next-generation EE compound offers maximum transverse stiffness and heat resistance, resulting in higher load capacity, higher peak torque capacity, less “heat fade” and less speed loss.
  • Delivers 75% greater dynamic axial stiffness on average, up to 50% lower speed losses and better recovery from temperatures up to +170°C (+338°F) without power loss.
  • Unmatched Temperature Capability – Runs cooler, resists glazing for better recovery and reduced cracking/chunking out after running at temps exceeding +149°C (+300°F).
  • Extended Belt Life – Belt life increased 100-300% versus aftermarket competitive belts in severe duty lab test conditions and in field testing.
  • Higher Power Capacity – Reduced speed (rpm) loss by 50% under high loads and increased load capacity by >10% compared to other aftermarket belt.



DON’T BREAK YOUR BELT. BREAK IT IN.

If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these steps to ensure the best performance and longest life from your G-Force™ belt.

1. Clean the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. Be sure your breather tubes are free of any belt material (broken belt material gets everywhere)

2. Install and Break It In. Perform two heat cycles (10-15 minutes each) at +27°C (+80°F) at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of +16°C (+60°F) or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
