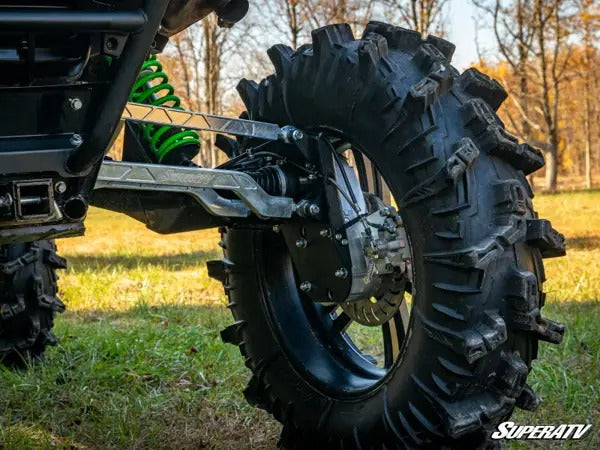

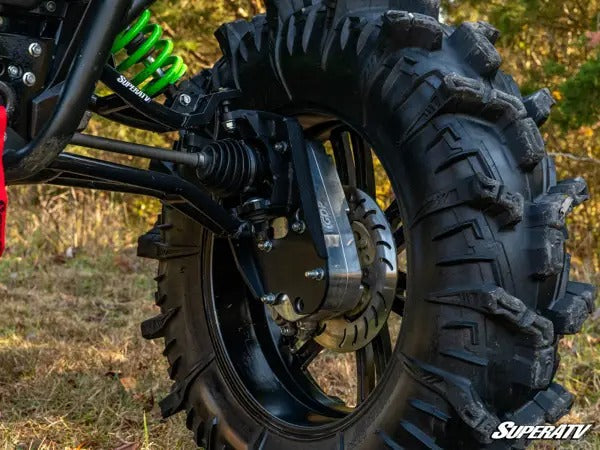

Kawasaki Teryx KRX 1000 8" Portal Gear Lift
Kawasaki Teryx KRX 1000 8" Portal Gear Lift
Couldn't load pickup availability

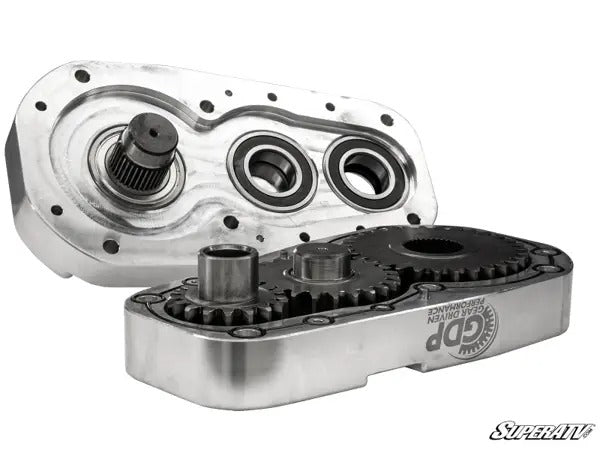

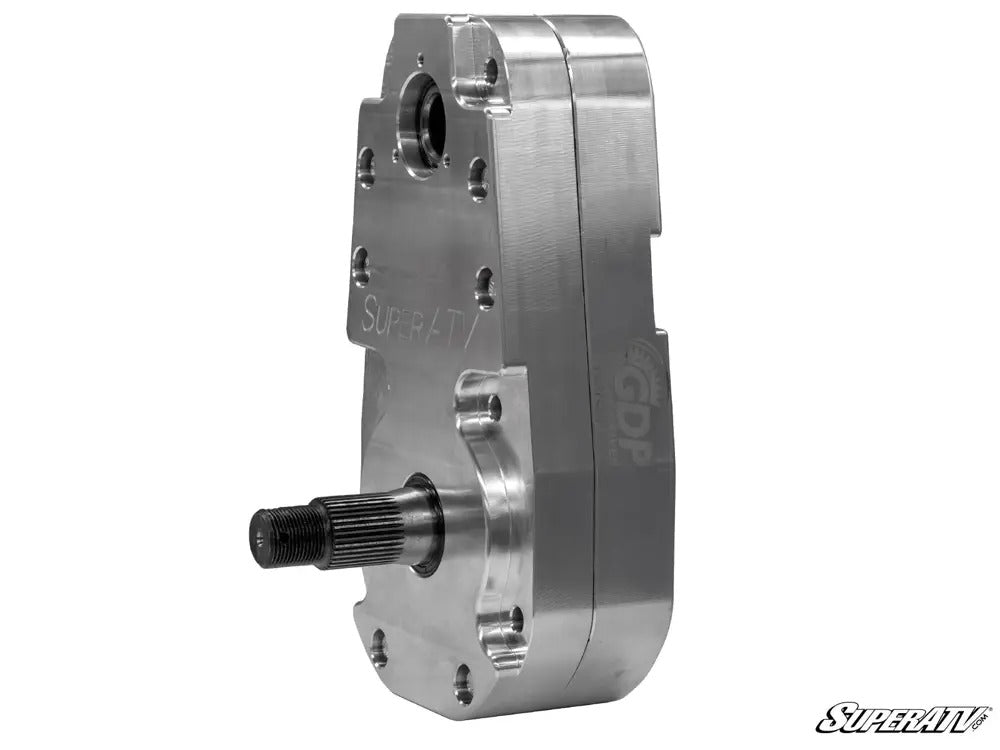

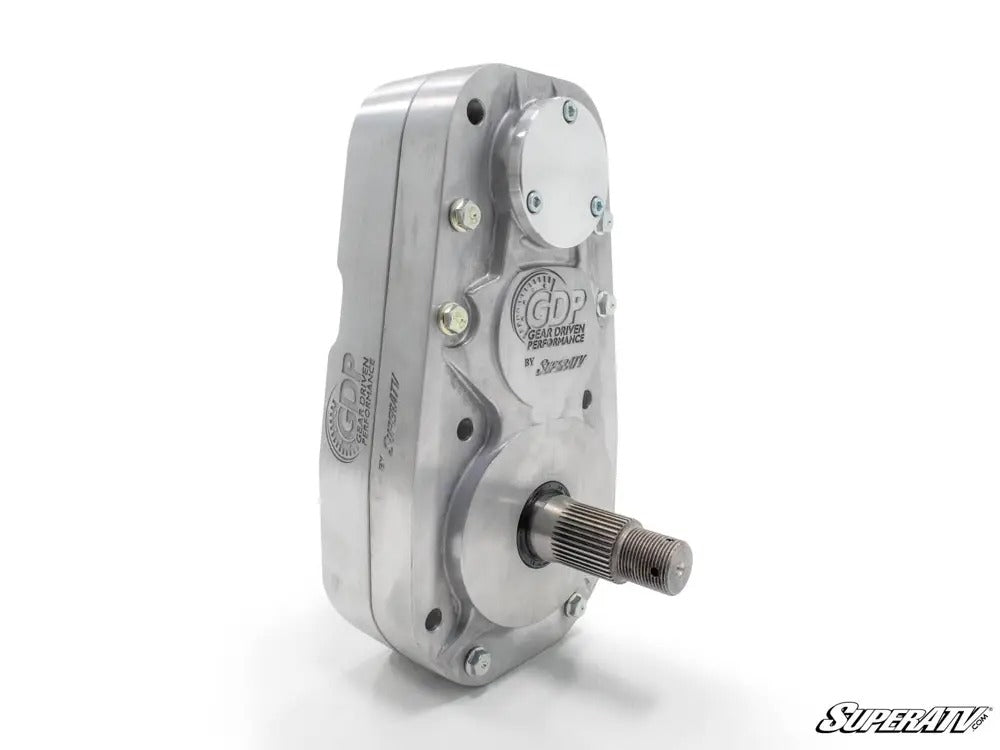

- Available with billet or cast aluminum housing

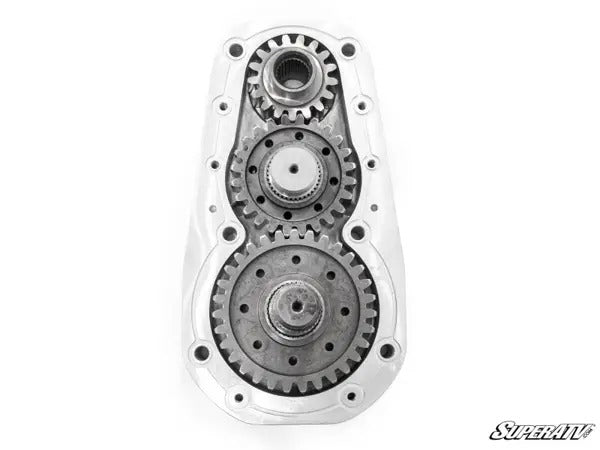

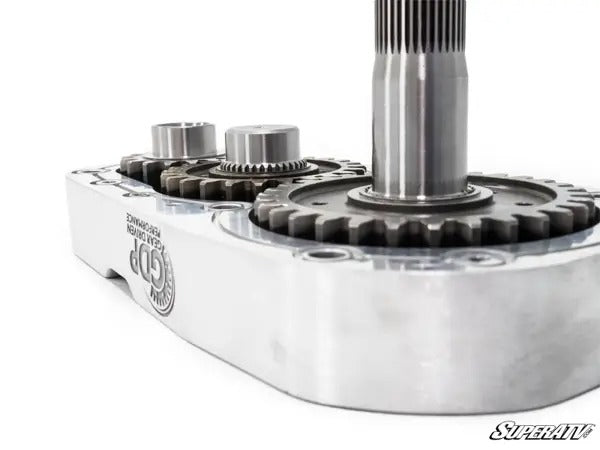

- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use Thermo-Tork® gaskets and rubber O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
A Big Lift with Big Power

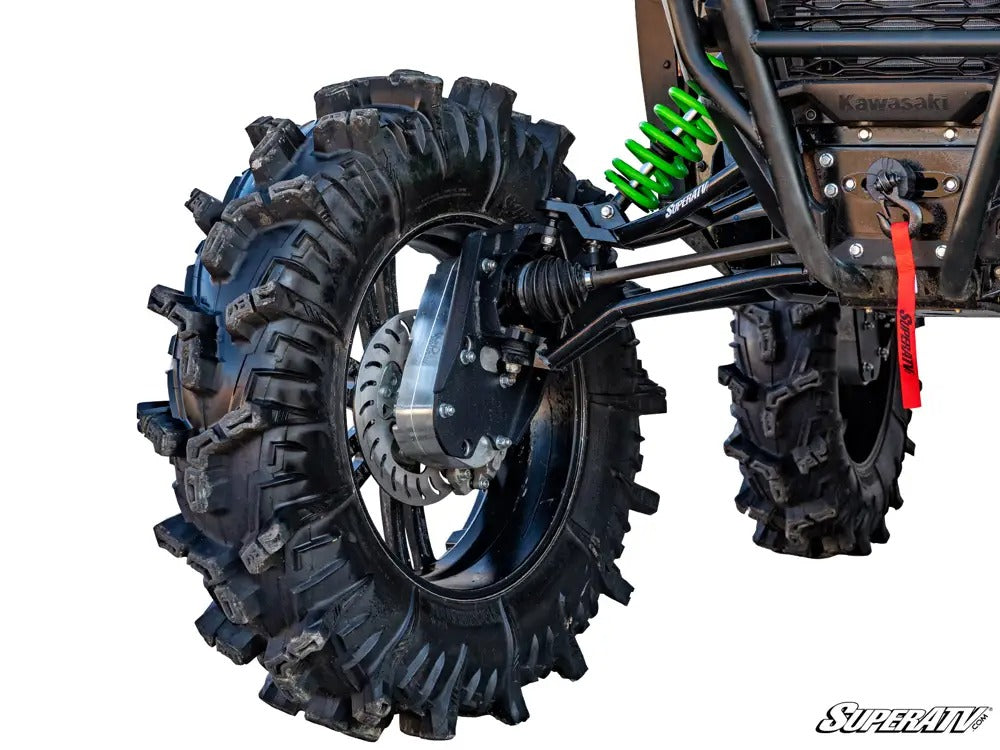

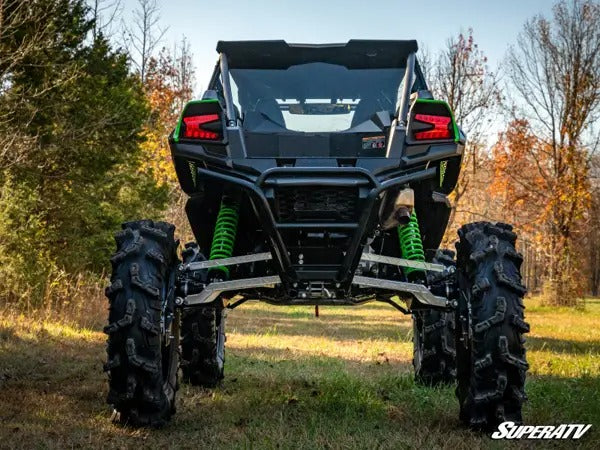

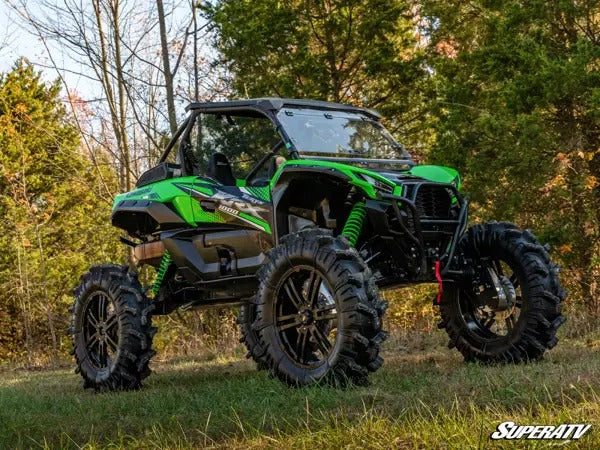

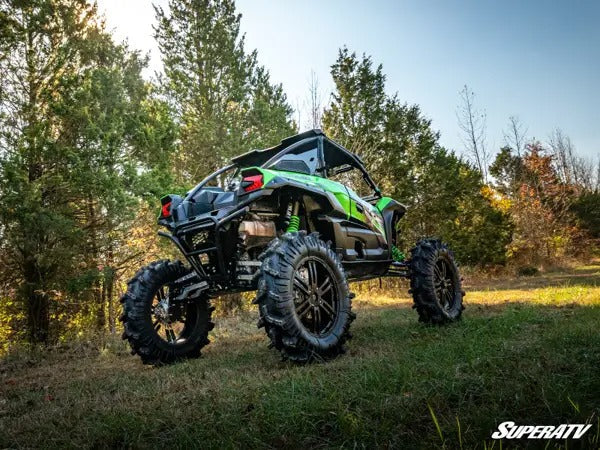

Your Kawasaki Teryx KRX 1000 isn’t supposed to be an average UTV. Install an 8” GDP Portal Gear Lift and it will be anything but. It gives you awesome ground clearance, boosts power with a 45% or 60% gear reduction, and makes you a beast everywhere you roll. You’ll dominate monster mud holes and crazy rock gardens like they’re not even there.
GDP—the Most Trusted Name in Portals
When it comes to game-changing performance, you shouldn’t settle for anything less than GDP. Why? GDP portals are tried and true. From the unmatched portal engineering experience to the thousands of riders that swear by them every day, our portals are unmatched. In fact, more riders roll on GDP portals than any other portal system. If you want a name you can trust, you want Gear Drive Performance.
Use a 45% and 60% to Master the Mud
If you want to dominate deep mud holes that swallow other riders whole, there’s only one way to do it. With 8 inches of extra ground clearance, you won’t get in over your head. But what really makes it tick is the 45% or 60% gear reduction built into the hubs. You get tons of torque to turn big tires through the deepest, nastiest mud you can find. A set of KRX 1000 portals will turn you into the master of mud.
A Gear Reduction Protects Your Drivetrain
When the gear reduction is in the hub instead of the transmission, your entire drivetrain benefits from it. Your axles, differential, prop shafts, and transmission will face less wear and tear thanks to this gear reduction.
Stronger Housings by Design
Whether you choose cast or billet aluminum for your housing, you know you’re getting a housing that’s built for battle. We’ve spent years refining our housing design to maximize strength in key areas that see the most force. With more than ten thousand housings out on the trail, you know they’re built to last. Combine them with 5/16” backing plates made with an advanced steel alloy, and you’ve got the brawniest portals on the market.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals
Our portals use:
- Advanced Thermo-Tork® Gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Reinforce Your UTV with a Frame Stiffer
These 8” portals are hardcore. In fact, they’re more hardcore than your Kawasaki KRX. You need a heavy-duty frame stiffener to make sure that your UTV survives all the action packed rides you’re about to go on. Trust us, we’ve bent more frames than we can count. Don’t mess around. Get a frame stiffener.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
| Kawasaki Teryx 8" Portal Gear Suspension Recommendations | |
|---|---|
| Max Tire Size | Required Suspension Setup with 8" Portals |
| 41" | Stock |
| 45" | 1.5" Forward Offset A-Arms |
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | |
| 8” Portal Gear Lift Includes: | ||
|---|---|---|

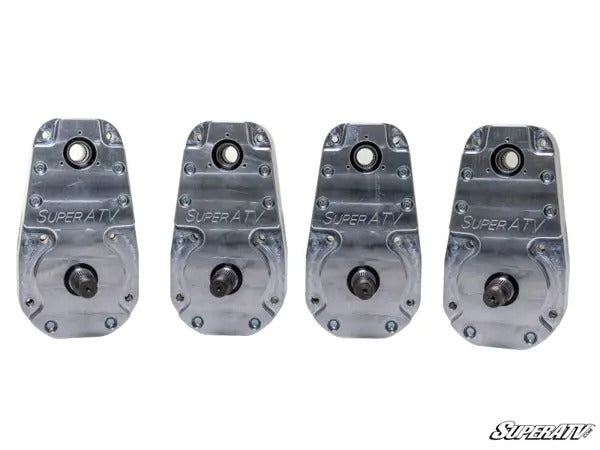

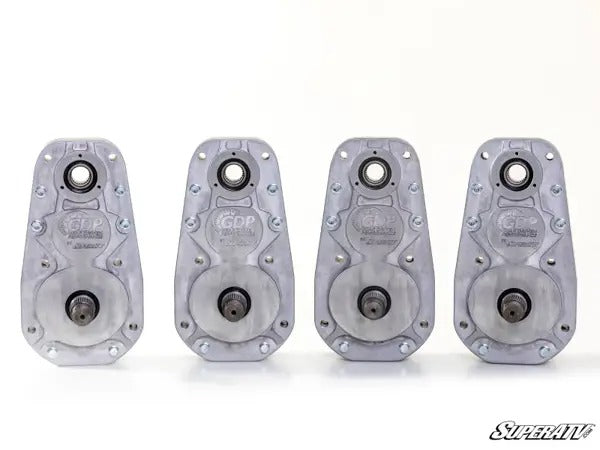

| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (8) Caliper mounting plate shims | ||
| Left and right parking brake brackets | ||
| Left and right brake cable brackets | ||
| Steering stop kit | ||
| Extended brake lines | ||
| Ball joint press tool | ||
| All required hardware, including recessed castle nut socket | ||
| Frame stiffener (optional) | ||
FITMENT
- Kawasaki Teryx KRX 1000 : 2020+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
INCLUDES
Item
DETAILS
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.
SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
Thank you for your business!
DOWNLOADS
Instructions
Instructions - FS-K-KRX
