Risk Racing

Lock-N-Load Pro - Strapless Moto Transport System

Lock-N-Load Pro - Strapless Moto Transport System

$299.99 USD
$299.99 USD
Sale Sold out
Size
    • Reduce pressure on fork seals
    • No more straps or wheel chocks
    • Load more bikes and gear in your truck, van, or trailer
    • Quick release from floor
    • Fully adjustable
    • Mounts in your trailer, truck, or van
    • Extra mounting plates available
    • Works with 2-strokes and 4-strokes

    Available in Two Sizes
    **Measure your bike before ordering to ensure fit**

    Lock-N-Load Mini Pro Moto Transport System - Size supports bikes 12inch-21inch Wide (304mm-533mm Wide) and 8.5 inch - 12 inch tall (216-305mm tall) which fits most 50cc Jr, 50cc Sr, 65cc, 110cc Trail dirt bikes (200 pound max weight) / Lock-N-Load Pro FULL SIZE supports bikes 12inch-21inch Wide (304mm-533mm Wide) and 12.5 inch - 18 inch tall (317-457mm tall) which fits most 85cc, 450cc and enduro dirt bikes with 315 pound max weight. For accuracy, measure both footpegs at the same time
    • LOCK-N-LOAD PRO
    • Model# 00174
    • Size: 20” x 10” x 18” (50.8cm x 25.4cm x 45.7cm)
    • Weight: 13.2lb (5.98kg)
    • Plate Dimensions: 21.25” x 6.75” x 0.5” (54cm x 17.1cm x 1.3cm)
    • 1-year warranty

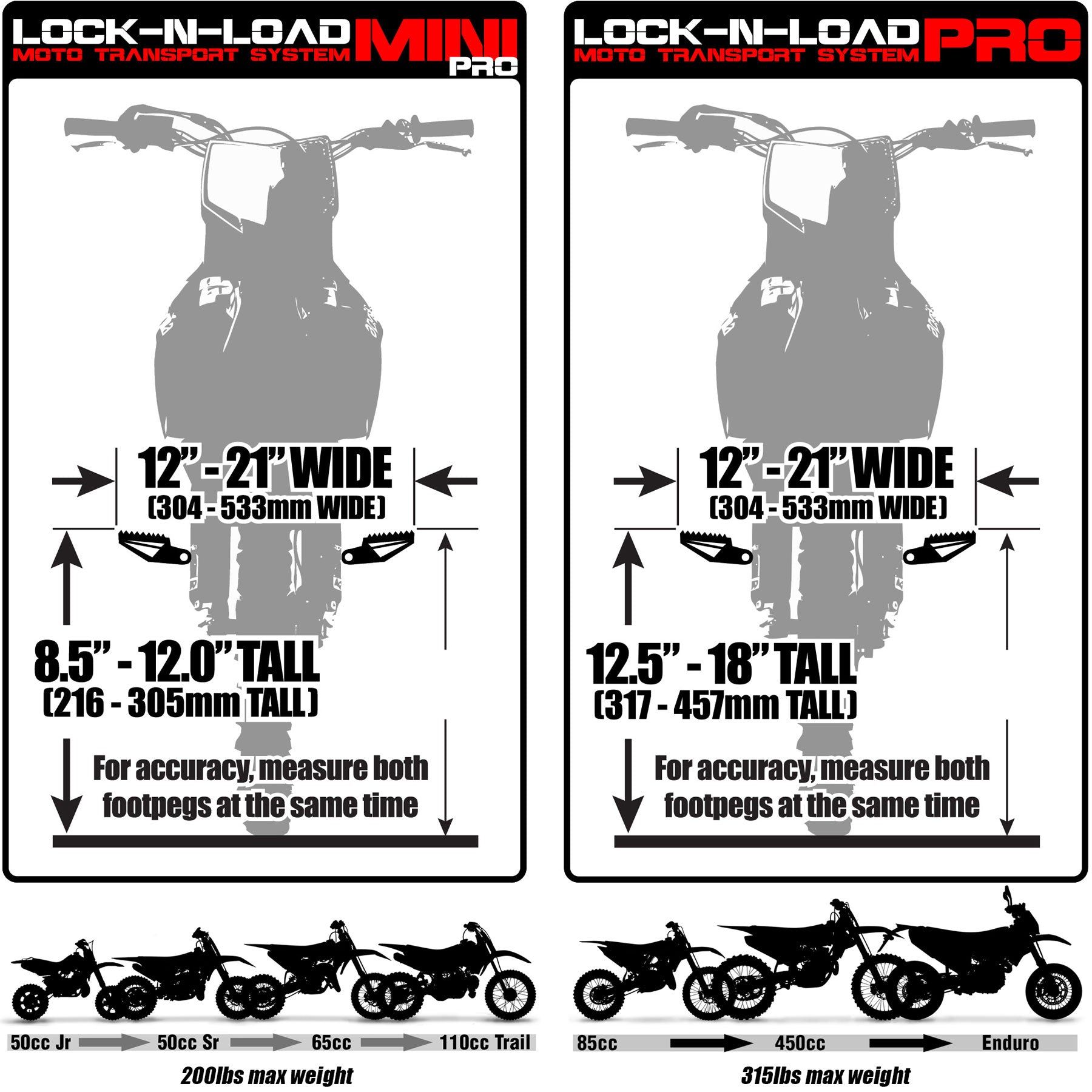

    Lock-n-load dimensions poster featuring semi transparent front facing dirt bike with text 12 inches thru 21 inches wide, 304 thru 533 mm wide, 12.5 inches thru 18 inches tall, 317 thru 457 mm tall, for accuracy measure both footpegs at the same time

    Designed to fit 85cc to Enduro bikes
    (or bikes with similar geometry)
    Max Weight: 315lbs (142.9Kg)



    • LOCK-N-LOAD PRO MINI
    • Model# 00176
    • Size: 20” x 10” x 16” (50.8cm x 25.4cm x 40.6cm)
    • Weight: 12.6lb (5.71kg)
    • Plate Dimensions: 21.25” x 6.75” x 0.5” (54cm x 17.1cm x 1.3cm)
    • 1 year warranty

    Lock-n-load mini pro dimensions poster featuring semi transparent front facing dirt bike with text 12 inches thru 21 inches wide, 304 thru 533 mm wide, 8.5 inches thru 12 inches tall, 216 thru 305 mm tall, for accuracy measure both footpegs at the same time

    Designed to fit 50cc jr to 110cc MX bikes
    (or bikes with similar geometry)
    Max Weight: 200lbs (90.7Kg)


    How to measure your bike

    To properly measure your bike, ask for assistance to hold your bike perfectly vertical and use two tape measures at the same time to measure footpeg height. Make sure both measurements are the same. Feel free to call if you have any bike-specific questions. Select your desired size in the online store when ordering.

    The jaws are fairly large and we have found that they will fit most oversized or rotating aftermarket foot pegs on the market.

    • [1] Lock-N-Load PRO or Lock-N-Load PRO MINI
    • [1] Mounting Hardware
    • [1] Instruction Sheet

  • Installing Lock-N-Load Pro

    Installing in truck bed

    Unboxing Lock-N-Load Pro

    Hennessey VelociRaptor 600 Sherco Edition

    PANIC REV Motocross Trailer

The All New Lock-N-Load Pro

The Lock-N-Load Pro Moto Transport System securely holds your motocross bike in your trailer without the use of tie-down straps, floor anchors, or wheel chocks. It takes an enormous amount of pressure off of the fork seals during transit, and it frees up valuable space allowing the transport of more motorcycles or gear. Additionally, the Lock-N-Load can quickly be removed from the trailer floor by loosening the 2 screws and removing the struts, leaving only the low profile mounting plate.

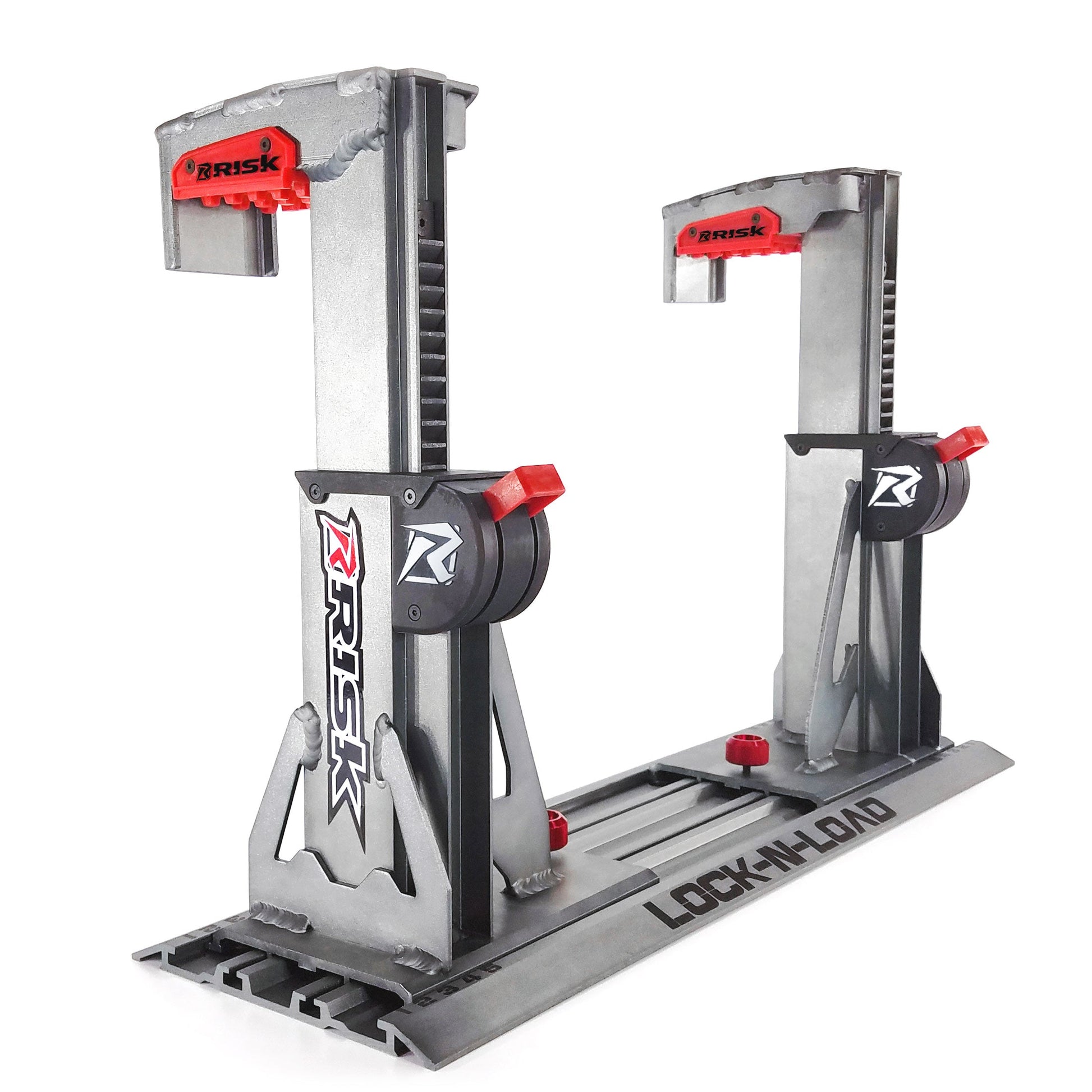

Lock-N-Load Pro studio pic three quarer shot with semi transparent dirt bike locked in by its footpegs. Risk Racing stickers on product and dirt bike.

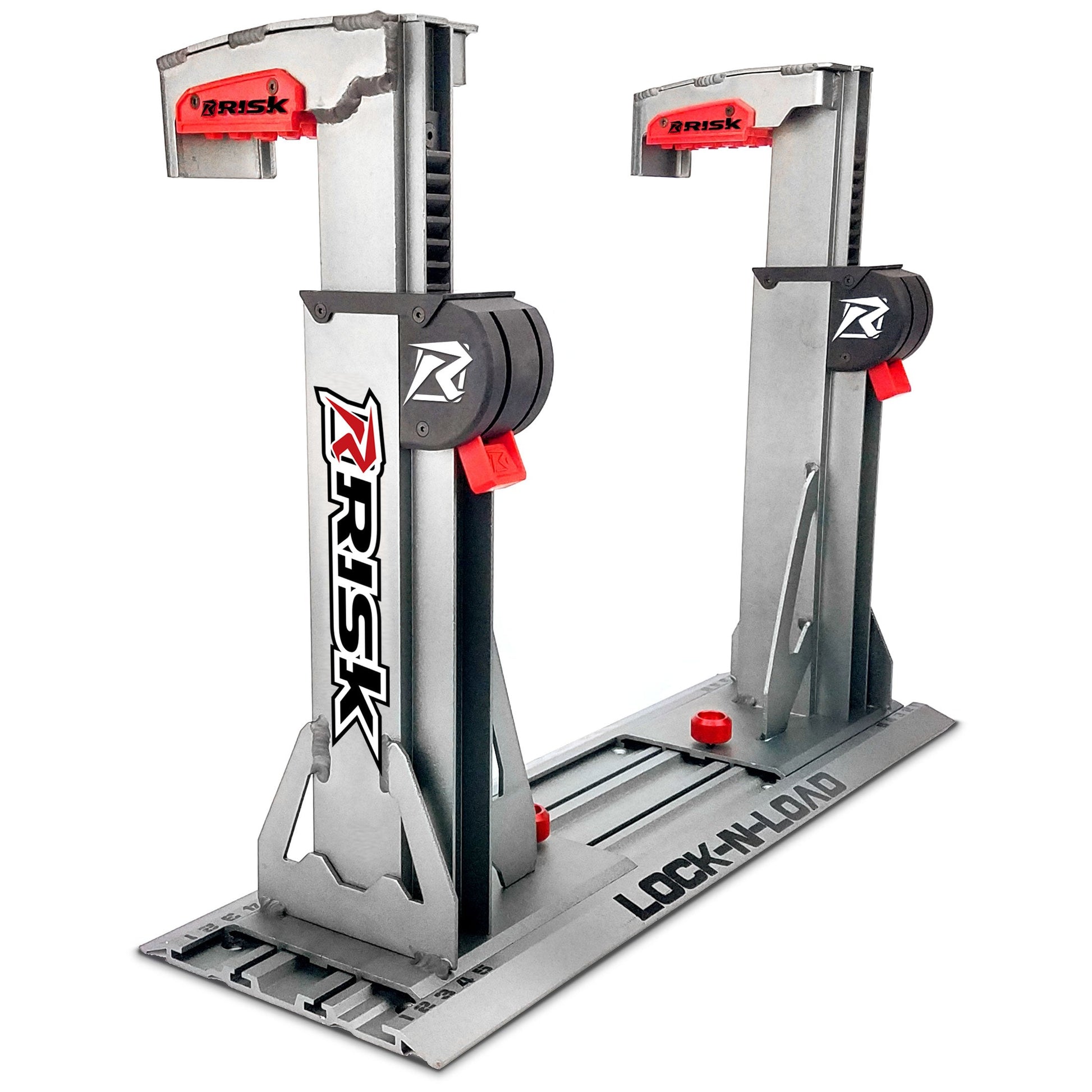

Aluminum Construction

Built tough to transport bikes safely and lightweight enough to store on a shelf in your garage when not in use.


Lock-N-Load Pro adjustable dirt bike transport system in three quarter pose. White studio background.


Closeup of a Lock-N-Load Pro adjustable ratcheting arm

Fully Adjustable

Adjust the new Lock-N-Load Pro on the fly to a large range of bikes with the new ratchet system.



Animated gif of someone offscreen showing how the lock-n-load pro works. Male arms come in from screen right and manipulate the arms in and out and up and down.


Super close up of the jaw of a lock-n-load pro clamping down on a dirt bike's foot peg. Swing arm and rear tire fading out into the white studio background.


Rubberized Jaws

Changeable rubberized jaw pad keeps bike more secure and protects footpegs

Super close up of the jaw of a lock-n-load pro clamping down on a dirt bikes foot peg. Swing arm and rear tire fading out into the white studio background.


Close up of the ratcheting system on the Lock-n-load dirt bike transport system by Risk Racing. White studio background.

Switch Release

Simply flip the switch to lock or release the arm ratchet system. Flip the switch down when locking the bike down then flip the switch up to allow the jaws to release.



Black spray lined truck bed featuring two Lock-n-load mounting plates installed in between the wheel wells. Also features two ez jugs installed. White truck cab with huge Risk Racing sticker in back window.


Mounting Plate

The low-profile plate mounts into your truck, trailer, or van. Allows lateral adjustability for wider bikes.

Lock-N-Load Pro mounting plate in three quarter pose close up on a white studio background.
Animated gif featuring male arms coming in from screen right and removing and reinstalling the arms on a lock-n-load pro dirt bike transport system. Titles include quick removal and install. All on a white studio background.
7 vehicle logos in a row showing potential places to mount a lock-n-load pro. Truck, trailer, van, motorhome, semi tractor trailer with Risk Racing logo caption reads oh, you're factory!, airplane caption reads captain fancy, and lastly a helicopter with caption that reads you baller!


How to install Lock-N-Load Pro

Wood Floor Installation and Use

Truck Bed Installation and Use



Available in Two Sizes

Youth dirt bike secured into a lock-n-load pro mini by Risk Racing on a white studio background. Lock-N-Load moto transport system Pro Mini Logo 4 dirt bike silouettes in a row showing the range of dirt bike sizes that the lock-n-load mini pro covers

Bike Size Ranges: 50cc Jr to 110cc Trail (max weight: 200 lbs)



Full size dirt bike secured into a Lock-n-load pro dirt bike transport system on white studio background Lock-N-Load Pro moto transport system Logo 3 dirt bike silouettes in a row showing the size range of dirt bikes that fit the lock-n-load pro dirt bike transport system

Bike Size Ranges: 85cc to Enduro (max weight: 315 lbs)



Feature Comparison of the Lock-N-Load Family

Lock-N-Load Pro product image Lock-N-Load Pro Mini product image Lock-N-Load Original product image Lock-N-Load Junior product image
Features Lock-N-Load Pro Lock-N-Load Pro Mini Lock-N-Load (Original) Lock-N-Load Junior
MSRP $299.99 USD $299.99 USD $199.99 USD $199.99 USD
Buy Now Add to cart Add to cart Add to cart Add to cart
Saves your fork seals by reducing pressure on them ✔ ✔ ✔ ✔
No more straps or wheel chocks ✔ ✔ ✔ ✔
Load more bikes and gear in your truck, van, or trailer ✔ ✔ ✔ ✔
Quick release from floor ✔ ✔ ✔ ✔
Fully adjustable ✔ ✔ ✘ ✘
Easy storage when not in use ✔ ✔ ✘ ✘
Types of bikes that can be hauled Generally most medium to full size dirt bikes, trial bikes and motocross races bikes.  See details for proper bike fitment Generally most small size dirt bikes, trial bikes and motocross races bikes.  See details for proper bike fitment Full size MOTOCROSS SPECIFIC RACE BIKES only Generally 85cc Motocross Race Bikes only (Including the CRF150R)
Extra mounting plates available (Sold Separately) ✔ ✔ separate plates for truck vs. trailer separate plates for truck vs. trailer
Works with 2-strokes and 4-strokes ✔ ✔ Limited - See details for proper bike fitment Limited - See details for proper bike fitment
Dirt Bike Maximum Weight 315 lbs 200 lbs Restricted by bike size, not weight Restricted by bike size, not weight
Dirt Bike Minimum Peg Width 12" 12" 18" 18"
Dirt Bike Maximum Peg Width 21" 21" 22" 22"
Dirt Bike Minimum Peg Height 12.5" 8.5" 15" 12.5"
Dirt Bike Maximum Peg Height 18" 12" 17.5" 14.75"
Fitment Guides Lock-N-Load Pro product image Lock-N-Load Pro Mini product image Lock-N-Load Original product image Lock-N-Load Junior product image
Size of the Lock-N-Load 20” x 10” x 18” 20” x 10” x 16” 20” x 10” x 18” 20” x 10” x 16”
Weight of the Lock-N-Load 13.2lb 12.6lb 20lb 19lb


What's Included

Lock-n-load pro included in the box pic featuring two arms, one base plate, one instruction sheets, and mounting hardware. White studio background


Unboxing video
Lock-N-Load Pro

Available in two sizes
Mounting hardware included



Accessories

closeup of a Lock-N-Load Pro Additional Mounting Plate in three quarter pose against a white studio background
Additional Mounting Plate
Shop


close up of a Lock-N-Load Pro Replacement Rubber Jaw and semi transparent aluminum arm around it
Replacement Rubber Jaw
Shop


California Prop. 65 WARNING:
This product can expose you to Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
