Polaris RZR XP Turbo 4" Portal Gear Lift
Polaris RZR XP Turbo 4" Portal Gear Lift
Couldn't load pickup availability

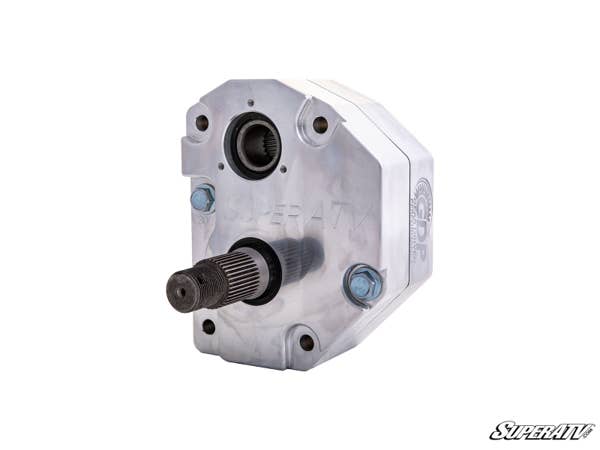

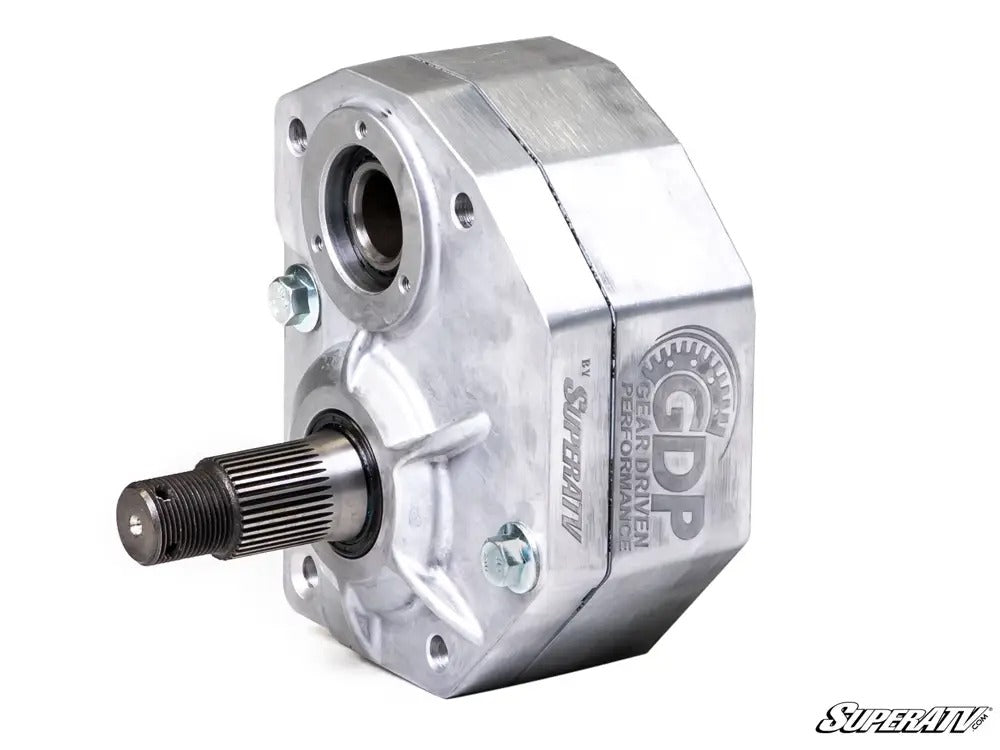

- Available with billet or cast aluminum housing

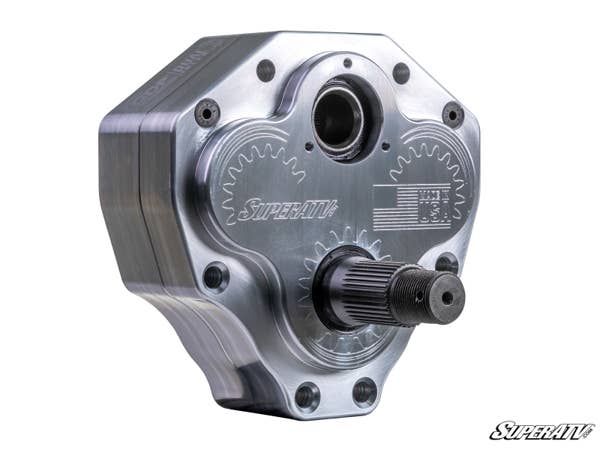

- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1” offset
- Lighter than the competition
- 14” or larger wheel required
- 14” & 15” wheels cannot exceed 4-1/2” backspacing
- 16” and larger wheels cannot exceed 5” backspacing
- If using factory 14” wheels, you must run 2” wheel spacers
- Not compatible with dual beadlock wheels
The Power and Performance You Need
We didn’t make the first side-by-side portal kit on the market—just the first kit that anybody gave a damn about. So ride when, where, and how you want with SuperATV’s GDP 4” Portal Gear Lift for the Polaris RZR XP Turbo. You get to choose a 15% or 30% gear reduction to match your ride style. Get maximum strength by adding dual idler gears. You get the portal you want with the performance you need. That’s what GDP is all about.

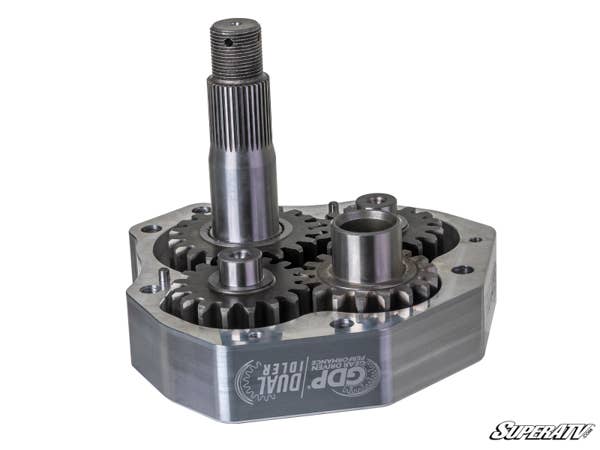

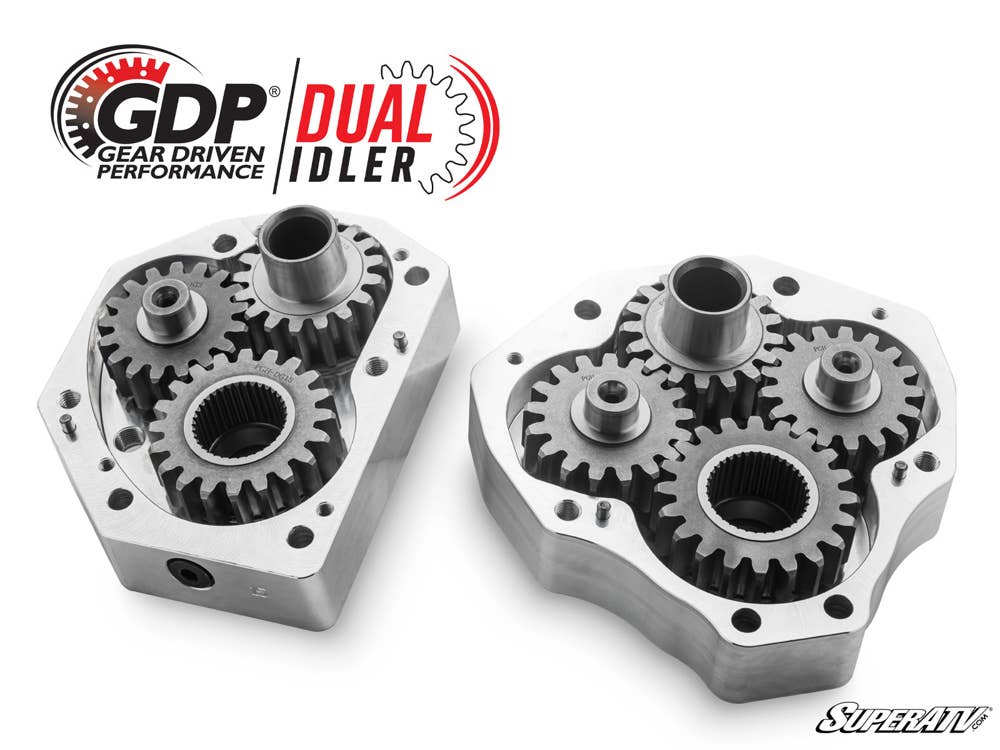

What Is a Dual Idler?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Ride Anywhere You Want
GDP Portals are built to go everywhere you do. Our portals thrive in dunes, desert, trails, and mud—they’re built for versatility. Get a 15% gear reduction for faster rides with enough torque to start getting wild. If you want the ultimate geared-down, torqued-up ride for monster tires, go with a 30% gear reduction. Grab dual idlers on either if you’re the kind of rider that can break anything. The extra strength is for you.
A Gear Reduction That Protects Your Drivetrain
Portals put the gear reduction in the hub, which greatly reduces the amount of stress put on your vehicle’s most crucial components. Knowing that your axles, differential, prop shaft, and transmission are in good hands lets you ride harder without worry.
Every Part Made Strong
Every part we make starts with strength at its core, and these RZR portals are no exception. Our cast and billet aluminum housings are the thickest and strongest you can get. Combine that with 5/16” backing plates made from an advanced steel alloy, and our portals are unstoppable.
Advanced Gaskets, Seals, and Bearings
Our portals use:
Protect Your RZR with a Frame Stiffener
Extra ground clearance and bigger tires lead to more action-packed rides. But can your stock frame keep up? To stay confident while you put pedal to the metal, consider adding a SuperATV Frame Stiffener when installing your new portals.
Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team because nobody likes to get an automated response. Give us a call so we can get the perfect set of portals in your hands today.
| 4” Portal Gear Lift Includes: | ||
|---|---|---|

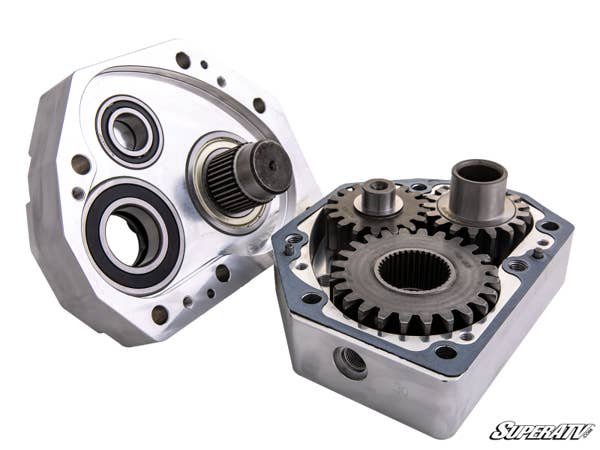

| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (4) Caliper adapter plates (2 with dual idler configuration) | ||
| (2) Hub adapters | ||
| (2) Steel steering arms | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Max Tire Size Recommendations for 4” Portal Gear Lift | ||
|---|---|---|
| Max Tire Size | Required Suspension Setup with 4" Portals | |
| 33" | Stock | |
| 34" | 3" Lift Kit | |
| 35" | 1.5" Forward Front A-Arms | |
| 37" | 1.5" Forward Front A-Arms and 3" Lift Kit | |
| 44" | 10" Lift Kit | |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator . | ||
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | ||
FITMENT
- Polaris RZR XP Turbo : 2016+
- Polaris RZR XP Turbo 4 : 2016+
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.
INCLUDES
Item
DETAILS
Limited Lifetime Warranty
When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.
SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Procedures for obtaining warranty service:
Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.
If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.
Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.
If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.
Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
