Super ATV

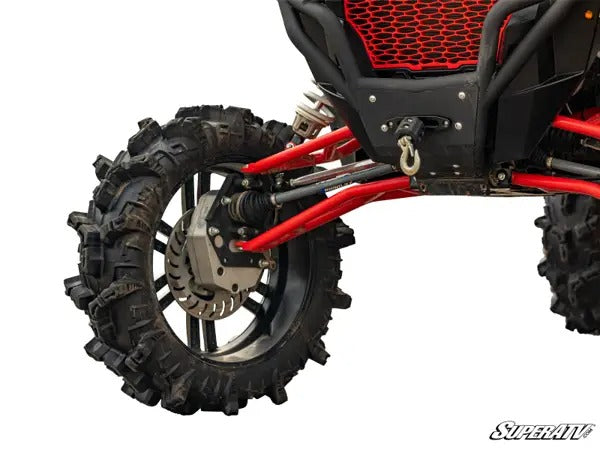

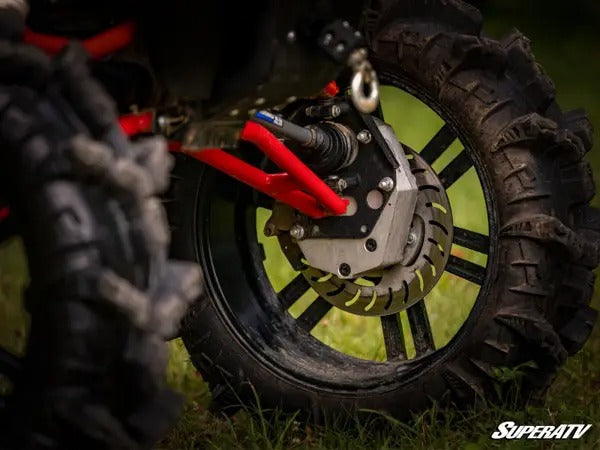

Polaris Rzr Xp Turbo 6" Portal Gear Lift

Name: Polaris Rzr Xp Turbo 6" Portal Gear Lift
Brand: Super ATV
SKU: PGH6D-1-58-303-B#XP
Price: 4199.95 USD
Availability: InStock

$4,199.95 USD

Sale Sold out

Select Idler Option Dual Single

Do you have a lift kit? Yes - I have a Big Lift Kit. No - I do not have a Big Lift Kit.

Portal Gear Reduction 30% 45% 60%

Product variants

Quantity

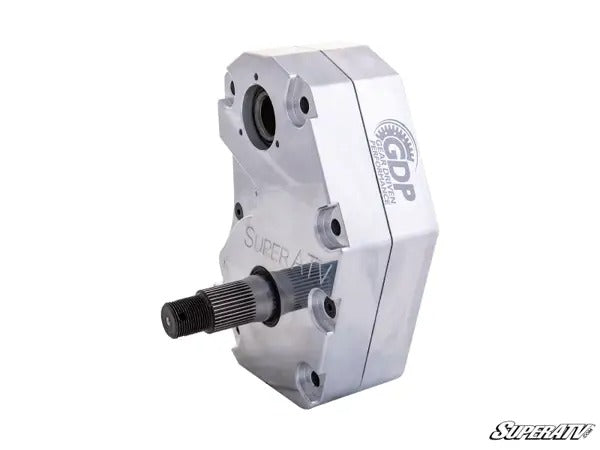

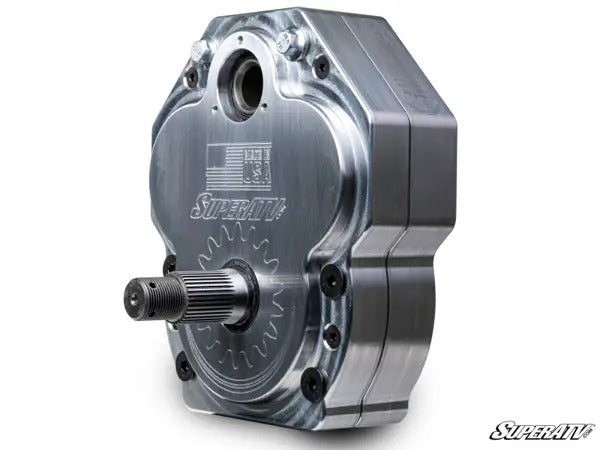

Available with billet or cast aluminum housing
Dual idler gear configuration maximizes strength
Cool, quiet, precision-ground gears made from 9310 alloy billet steel
Increases width by 4 in. per side (8 in. total)
1.5 in. diameter 4340 hardened steel drive shaft
Housings use Thermo-Tork® gaskets or O-rings that don’t let anything through
Universal hub fits all major bolt patterns
Gear reduction reduces stress on your drivetrain
Dual idler gear configuration adds a 1.5” offset
Lighter than the competition

Wheel Requirements:

18” or larger wheel required
18” wheels cannot exceed 4-1/2” backspacing 
20” and larger wheels cannot exceed 5” backspacing

Gen 3 Portals Are Game Changers
GDP didn’t make the first side-by-side portal kit—just the first kit that anybody gave a damn about. SuperATV’s GDP Portal Gear Lifts are built by riders, for riders. And we’re not just talking one specific type of riding—our portals are geared for all. Whether you’re into mud, rocks, trails, or all of the above, we’ve got the perfect setup for your Polaris RZR XP Turbo. Choose a 30%, 45%, or 60% gear reduction to boost power and performance. Or get the ultimate in strength for extreme rides by adding dual idler gears. GDP isn’t a “good enough” company. Everything is engineered, overengineered, and tested to its breaking point. That’s how we ensure quality.

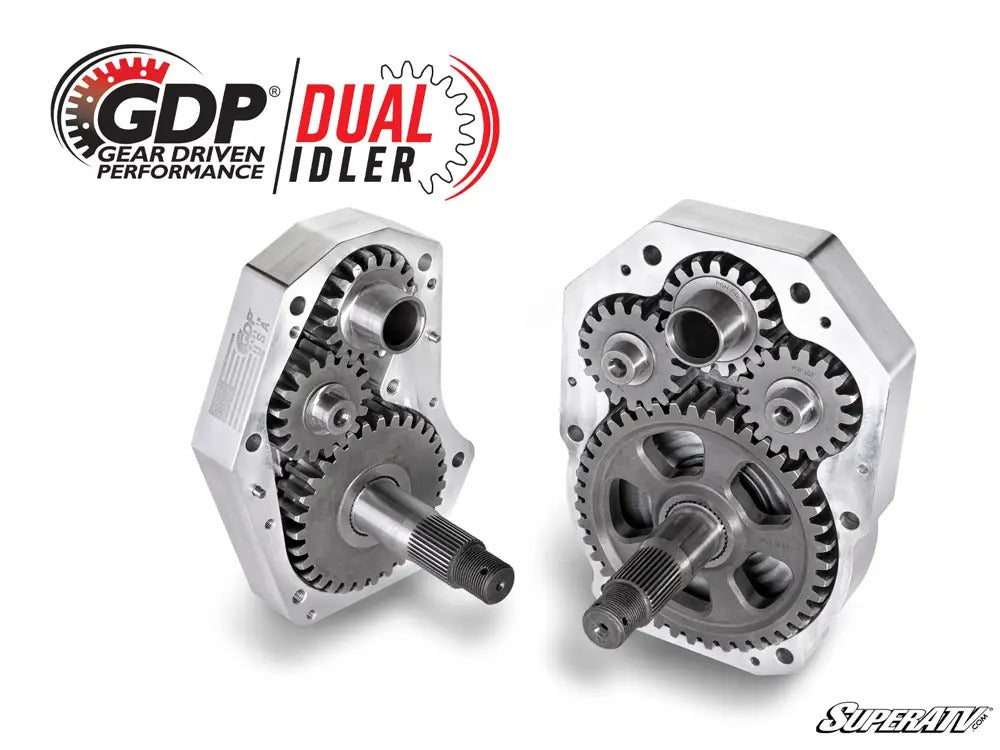

What is a Dual Idler?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Perfect for All Riding Styles
Never stop riding. That’s at the core of what GDP is. So whether your next adventure takes you to the dunes or some backwoods trail, there’s a GDP Portal Gear Lift for you. Get a smaller 30% reduction for faster rides that still pack plenty of torque. Bigger tires for rocks or rough rides require a bigger gear reduction—like 45%. Build the mother of all mudders with a 60% gear reduction. Then take your strength over the top with dual idler gears. Portals give you your torque back so your monster build can still rip harder than the rest.

A Gear Reduction That Protects Your Drivetrain
One of the many reasons to love portals is because they put the gear reduction directly in the hub. There’s no unnecessary stress placed on your axles, differential, prop shaft, and transmission, so those parts will last longer. You can ride as hard as you want knowing that your drivetrain is taken care of.

The Strongest Portal Lift Around
Without the strength you need, every ride will end short. That’s why GDP portals are the strongest you can get. Our cast and billet aluminum housings are the thickest and strongest you can get. Combine that with 5/16” backing plates made from an advanced steel alloy, and our GDP Portals are built to take on the worst your RZR XP Turbo can dish out.

Our housings are reinforced for gear retention and optimized for oil flow

Advanced steel alloy backing plates are stronger than chromoly

Enhance with Portal Blood—gear oil formulated for GDP Portals

There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

FITMENT

Polaris RZR XP Turbo : 2016+
Polaris RZR XP Turbo 4 : 2016+

NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.

INCLUDES

Item

DETAILS

Limited Lifetime Warranty

When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.

SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.

Procedures for obtaining warranty service:

Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.

If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.

Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.

If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.

Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
