Polaris Rzr Xp Turbo S 6" Portal Gear Lift

Name: Polaris Rzr Xp Turbo S 6" Portal Gear Lift
Brand: Super ATV
SKU: PGH6D-1-75-301-B
Price: 3779.96 USD
Availability: InStock

$3,779.96 USD

Sale Sold out

Select Idler Option Dual Single

Portal Housing Material Billet Cast

Portal Gear Reduction 30% 45% 60%

Product variants

Quantity

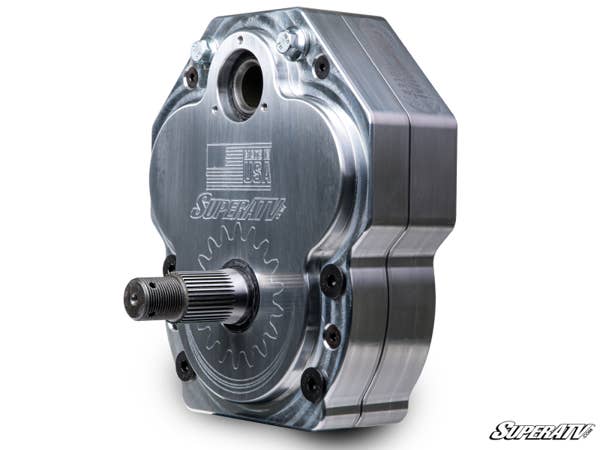

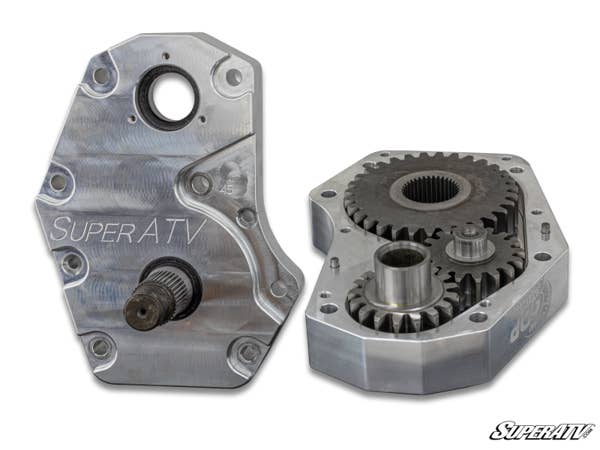

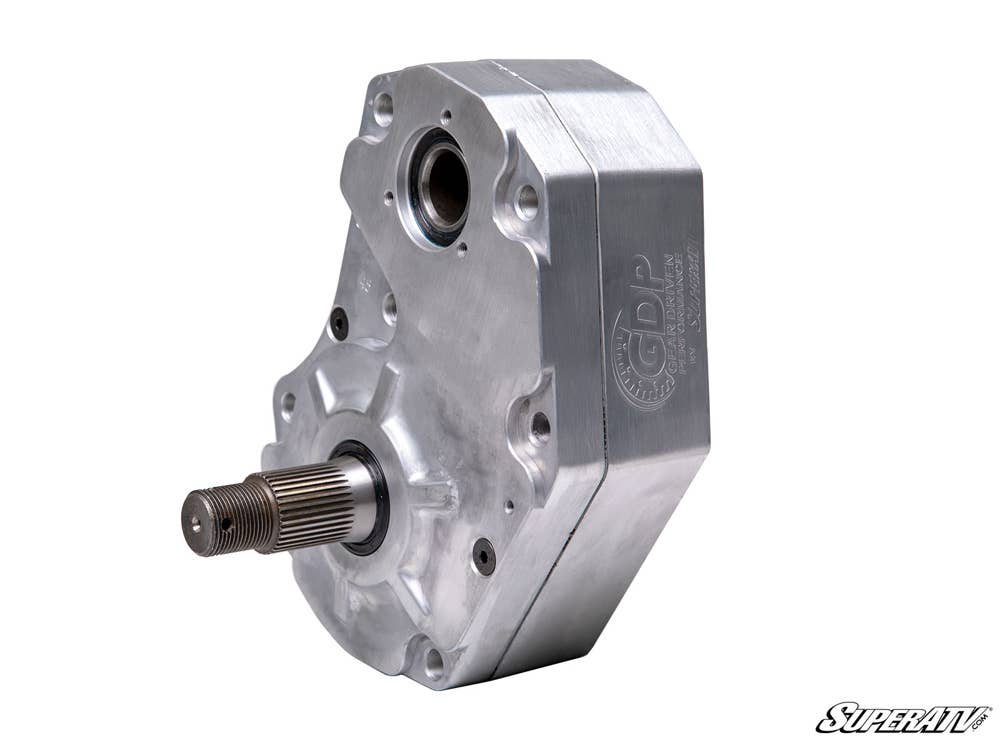

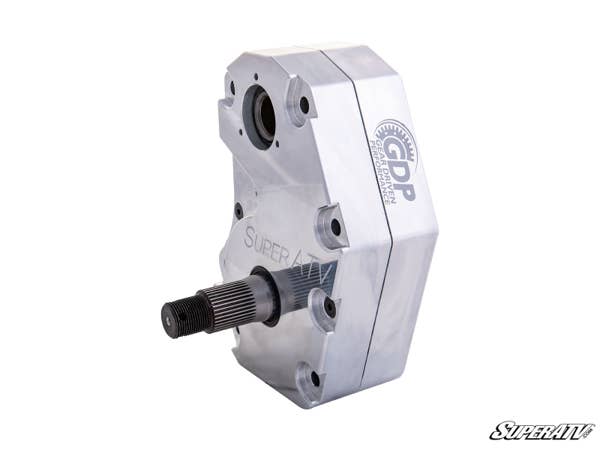

Available with billet or cast aluminum housings
Dual idler gear configuration maximizes strength
Cool, quiet, precision-ground gears made from 9310 alloy billet steel
1.5 in. diameter 4340 hardened steel drive shaft
Housings use Thermo-Tork® gaskets or O-rings that don’t let anything through
Universal hub fits all major bolt patterns
Gear reduction reduces stress on your drivetrain
Dual idler gear configuration adds a 1” offset
Lighter than the competition

Wheel Requirements:

18” or larger wheel required
20” and larger wheels cannot exceed 5” backspacing

GDP’s Polaris Turbo S Portals Are the Industry’s Best

You don’t know what you’ve been missing—hitting the trail with GDP’s power and capability on your UTV is the best way to ride. So get a complete performance overhaul with SuperATV’s GDP 6” Portal Gear Lift for the Polaris RZR XP Turbo S. Customize by choosing between a 30%, 45%, or 60% gear reduction and selecting a cast or billet aluminum housing. You can also take your strength over the top by upgrading to our dual idler configuration. No matter how you ride, GDP can make it better.

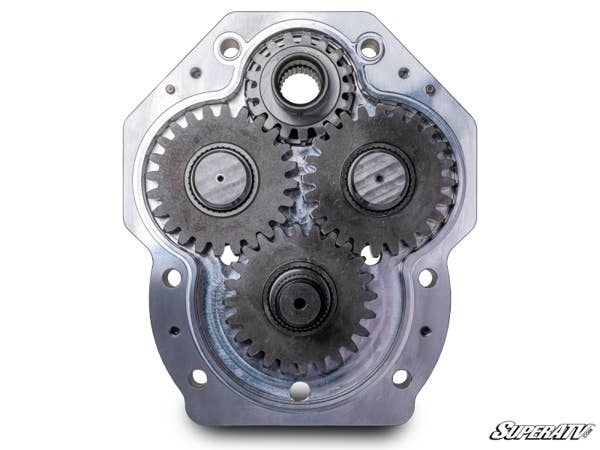

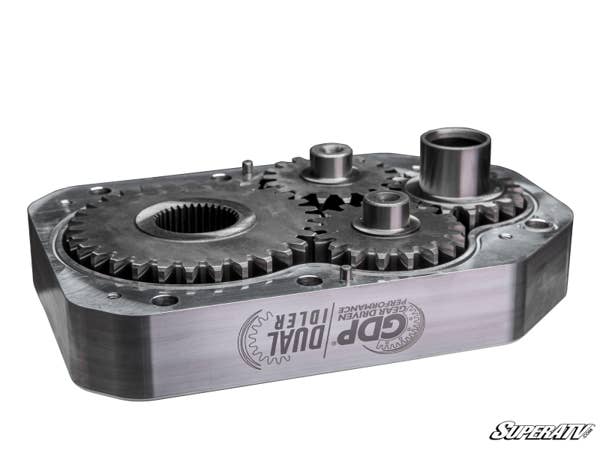

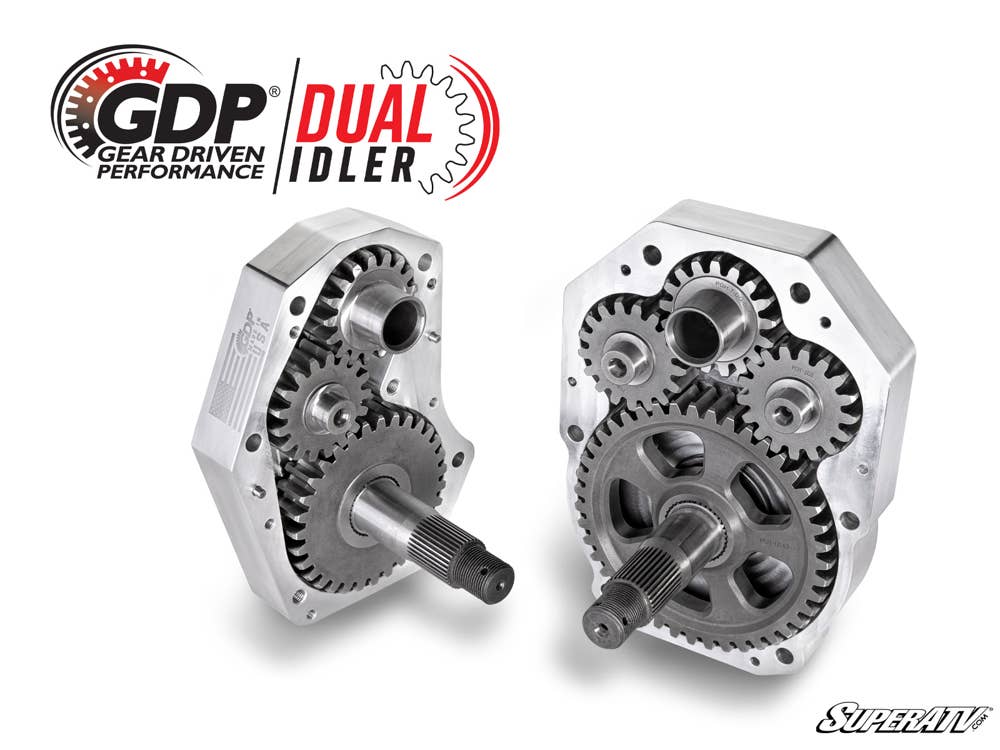

What is a Dual Idler?

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Different Gear Reductions For Different Ride Styles

You can choose between 30%, 45%, and 60% gear reductions. Match your gear reduction to the way you ride for perfectly balanced power and speed. If you like to hit the gas and fly on the trails, go with 30%. For mud and rocks, go with 45%. If you’re rocking massive tires and want to make sure you always come out of the bounty hole first, go with the maximum 60% gear reduction.

GDP Portals Put Less Strain on Your Drivetrain

GDP Portals give you a gear reduction in the hub instead of the transmission. This reduces the wear and tear on your axles, differential, prop shaft, and transmission. Portals also maintain factory suspension geometry to keep your CVs happy and cool. Your RZR’s most vital parts will last longer.

GDP Is Built to Be the Strongest
These RZR XP Turbo S portals are built for hard rides and tons of fun. That’s why everything from the billet housings to the advanced 5/16” steel alloy backing plates are designed to be as strong as possible. Push them to the limit—that’s what they’re for.

Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance with Portal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

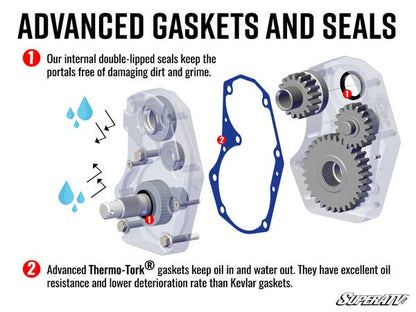

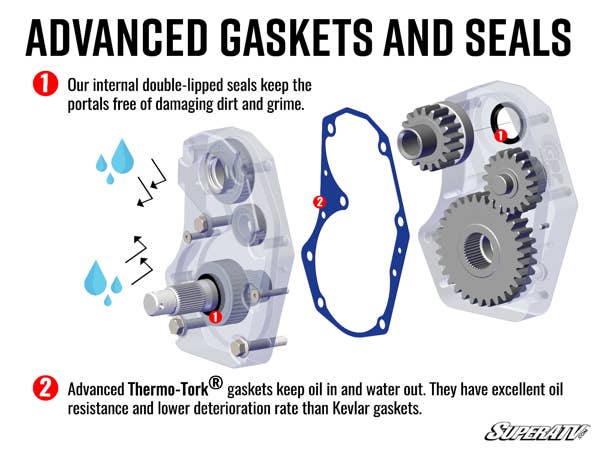

Advanced Gaskets, Seals, and Bearings
Our portals use:

Advanced Thermo-Tork® Gaskets and O-rings with excellent oil resistance and low deterioration rates
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks
Double-angular contact output bearings to prevent premature wear
Roller idler and drive bearings to maintain perfect gear meshing

Reinforce Your Frame with a Frame Stiffener

We highly recommend running a SuperATV Frame Stiffener with your 6" Portal Gear Lift. The stock frame just doesn't have what it takes. A frame stiffener reinforces your frame enough to let you ride your 6" portals with monster tires and no worries.

Top-Rated Customer Service

Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

6” Portal Gear Lift Includes:
(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets or O-rings, and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(4) Caliper adapter plates
(2) Steel steering arms
(2) Rear hub adapters
Extended brake lines
All required hardware, including recessed castle nut socket
Frame stiffener (optional)

FITMENT

Polaris RZR XP Turbo S : 2018+
Polaris RZR XP Turbo S Velocity : 2019+
Polaris RZR XP Turbo S 4 : 2019+

NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer.

INCLUDES

Item

DETAILS

TERMS OF WARRANTY

When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.

SuperATV takes pride keeping your GDP Portal Gear Lift in working order. That’s why we give you, the original purchaser, a lifetime of portal protection contingent on the following conditions. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.

How to make a warranty claim?

Before sending anything to SuperATV, please click below to fill out the appropriate form:

WARRANTY

RETURNS

Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.

If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.

Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.

If you have product that is outside of warranty coverage or it is determined that product shows evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. Customer will be notified and we will repair for a $250 fee.

Replacement bearings, seals and gaskets can be found at www.SuperATV.com.
