Portal Gear Lift 6'' RZR PRO XP (2 & 4 Seater) - 45% Single Idler Version
Portal Gear Lift 6'' RZR PRO XP (2 & 4 Seater) - 45% Single Idler Version
Regular price
$3,495.00 USD
Regular price
Sale price
$3,495.00 USD
Unit price
per
Couldn't load pickup availability
Want lift plus power and performance? High Lifter engineered a gearing setup for a 6'' portal with 45% gear reduction. You can run a larger tire size between a 33 to 39 inches and have the torque and horsepower you need. The 45% gear reduction is a robust set of portals giving height and power in any terrain. Mud Riding geared to get you out of the thickest mud holes and 6 inches of height to pass over anything that comes in your way. Rock Climbing 45% gear reduction makes that rocky terrain seem easy. You’ll have the power to ease right over rocks and boulders, plus added lift to run big tires to go places your friends can’t.
- Weight: 250.000000
- Length: 48.000000
- Width: 40.000000
- Height: 36.000000
Why is this 6” kit better than our competitor?
Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling

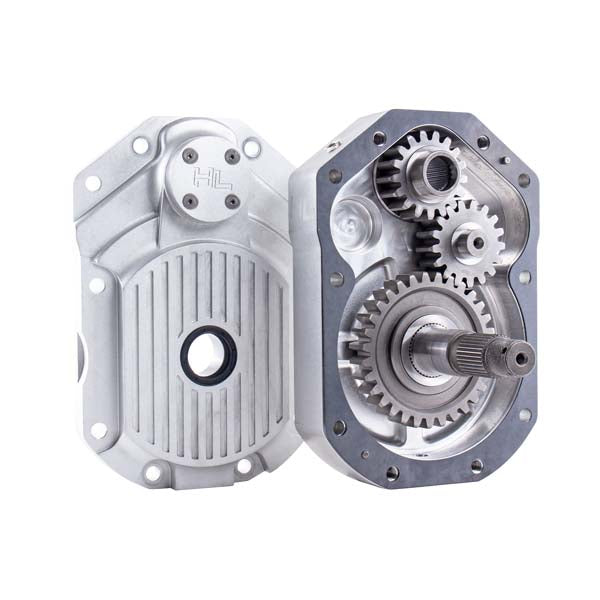

Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
FITMENT
-
2022 Polaris RZR PRO XP Sport
-
2022 Polaris RZR PRO XP Premium
-
2022 Polaris RZR PRO XP Ultimate
-
2022 Polaris RZR PRO XP 4 Sport
-
2022 Polaris RZR PRO XP 4 Premium
-
2022 Polaris RZR PRO XP 4 Ultimate
-
2022 Polaris RZR PRO XP Ultimate Rockford Fosgate
-
2022 Polaris RZR PRO XP 4 Ultimate Rockford Fosgate
-
2020 Polaris RZR PRO XP
-
2020 Polaris RZR PRO XP Premium
-
2020 Polaris RZR PRO XP Ultimate
-
2020 Polaris RZR PRO XP 4
-
2020 Polaris RZR PRO XP 4 Premium
-
2020 Polaris RZR PRO XP 4 Ultimate
-
2021 Polaris RZR PRO XP Sport
-
2021 Polaris RZR PRO XP Premium
-
2021 Polaris RZR PRO XP Ultimate
-
2021 Polaris RZR PRO XP 4 Sport
-
2021 Polaris RZR PRO XP 4 Premium
- 2021 Polaris RZR PRO XP 4 Ultimate
INCLUDES
Item
DETAILS
TERMS OF WARRANTY
Click here for High Lifter's limited lifetime warranty.
Warning: This product can expose you to chemicals including Titanium Dioxide, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
DOWNLOADS
Installation Instructions
