Portal Gear Lift 6'' RZR TURBO (2 & 4 Seater) - 45% Single Idler Version

Name: Portal Gear Lift 6'' RZR TURBO (2 & 4 Seater) - 45% Single Idler Version
Brand: High Lifter
SKU: PGL-645-RZRT
Price: 3495.0 USD
Availability: InStock

$3,495.00 USD

Sale Sold out

Product variants

Quantity

Want lift plus power and performance? High Lifter engineered a gearing setup for a 6'' portal with 45% gear reduction. You can run a larger tire size between a 33 to 39 inches and have the torque and horsepower you need. The 45% gear reduction is a robust set of portals giving height and power in any terrain. Mud Riding geared to get you out of the thickest mud holes and 6 inches of height to pass over anything that comes in your way. Rock Climbing 45% gear reduction makes that rocky terrain seem easy. You’ll have the power to ease right over rocks and boulders, plus added lift to run big tires to go places your friends can’t.

Weight: 250.000000
Length: 48.000000
Width: 40.000000
Height: 36.000000

Why is this 6” kit better than our competitor?

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant

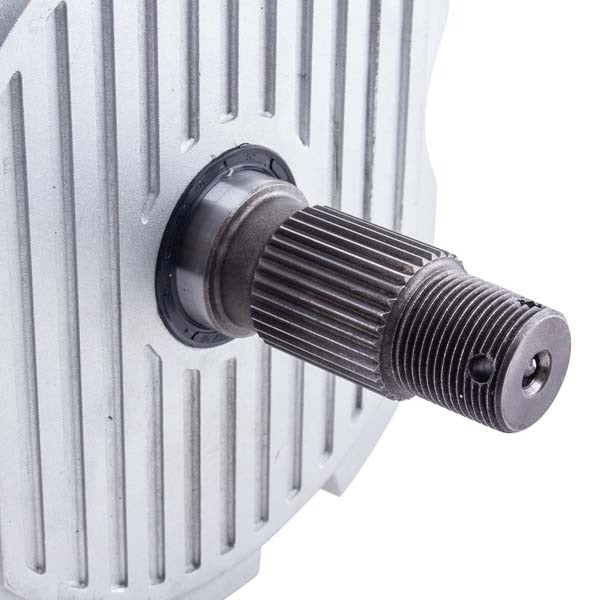

Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

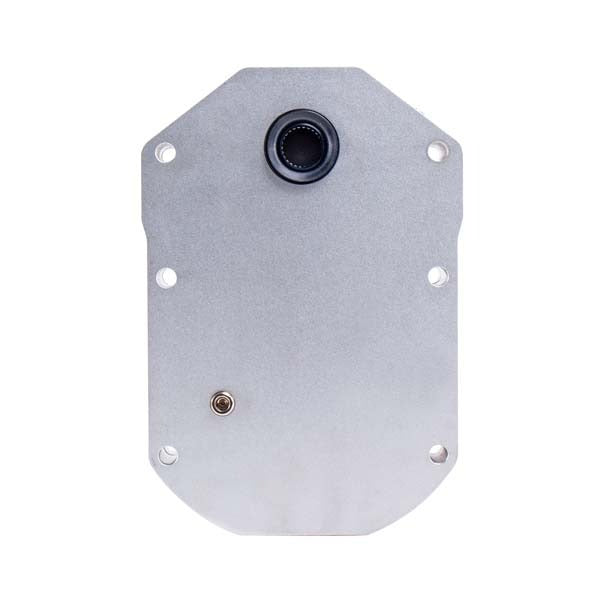

Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with Bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications

13” Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

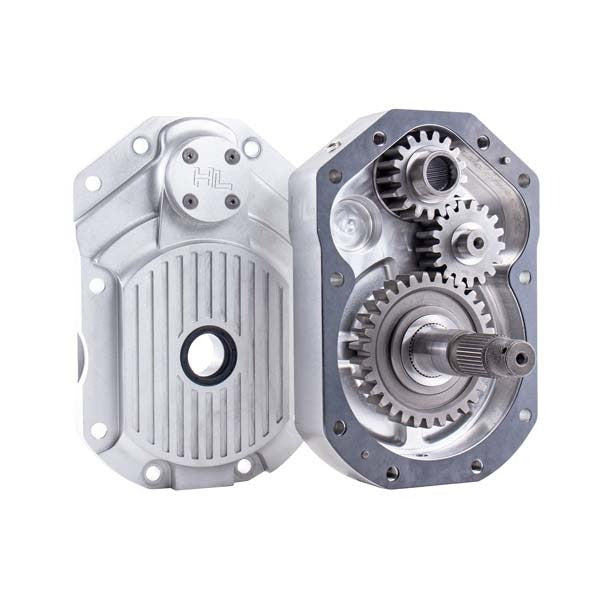

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

FITMENT

2016 Polaris RZR TURBO XP EPS
2016 Polaris RZR TURBO 4 XP EPS
2017 Polaris RZR TURBO XP EPS
2017 Polaris RZR TURBO 4 XP EPS
2018 Polaris RZR TURBO XP DYNAMIX Edition
2018 Polaris RZR TURBO XP EPS
2018 Polaris RZR TURBO XP 4 EPS
2018 Polaris RZR TURBO XP FOX Edition
2018 Polaris RZR TURBO XP 4 FOX Edition
2019 Polaris RZR TURBO XP EPS
2019 Polaris RZR TURBO XP LE
2019 Polaris RZR TURBO XP DYNAMIX Edition
2019 Polaris RZR TURBO XP 4 EPS
2019 Polaris RZR TURBO XP 4 LE
2019 Polaris RZR TURBO XP 4 DYNAMIX Edition
2020 Polaris RZR TURBO XP
2020 Polaris RZR TURBO XP 4
2021 Polaris RZR Turbo XP
2021 Polaris RZR Turbo XP 4

INCLUDES

Item

DETAILS

TERMS OF WARRANTY

Click here for High Lifter's limited lifetime warranty.
